Nextion Man-machine Interface HMI Kernel

Nextion Direct Factory HMI TFT Touch Screen LCD Display Module Man-machine Interface HMI Kernel

Description:

Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

This solution includes hardware part - a series of TFT boards and software part - Nextion editor. Nextion TFT board uses only one serial port to do communicating. Let you get rid of the wiring trouble. We notice that most engineers spend much time in application development but get unpleasant results. In this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design. And the drag-and-drop function ensures that you spend less time in programming, which will reduce your 99% development workloads. With the help of this WYSIWYG editor, GUI designing is a piece of cake.It's easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART.

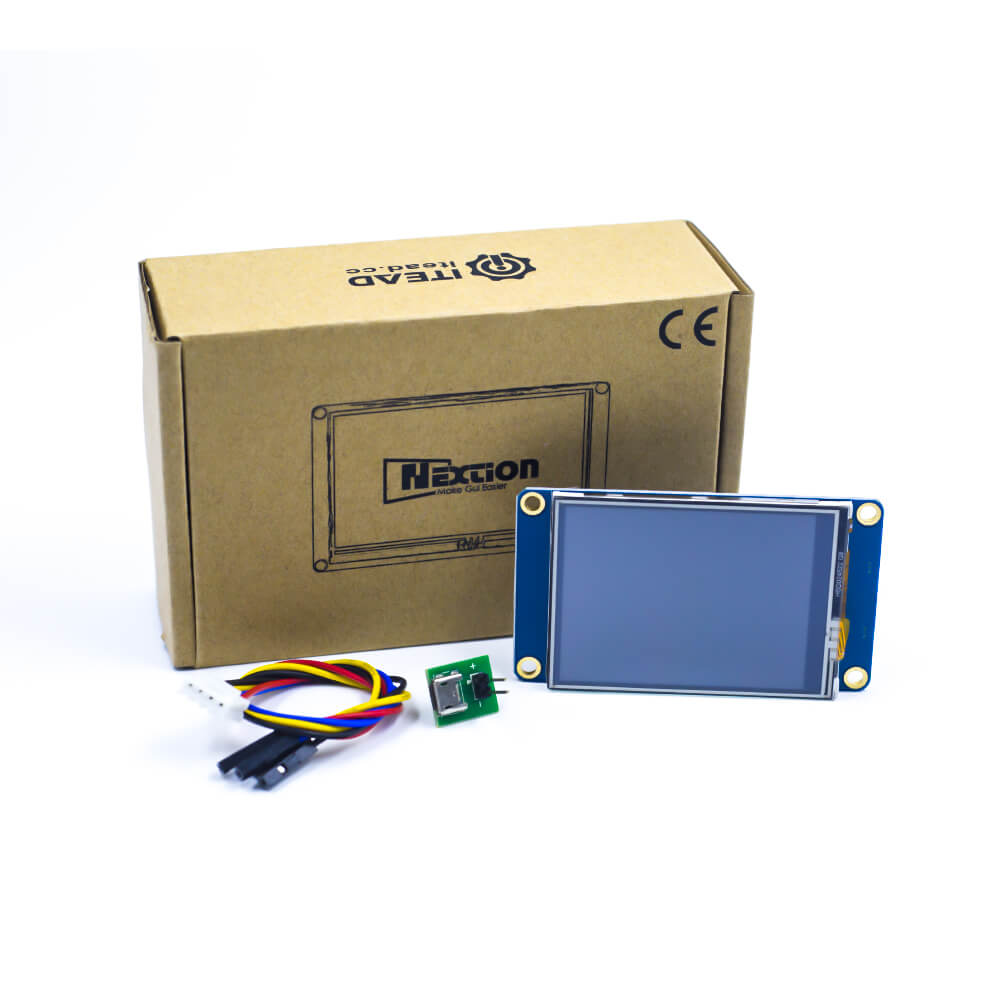

Package includes:

• 1 x Nextion Stanard HMI Display
• 1 x Micro USB to 2P Connector Board
• 1 x 4-Pin Grove Cable

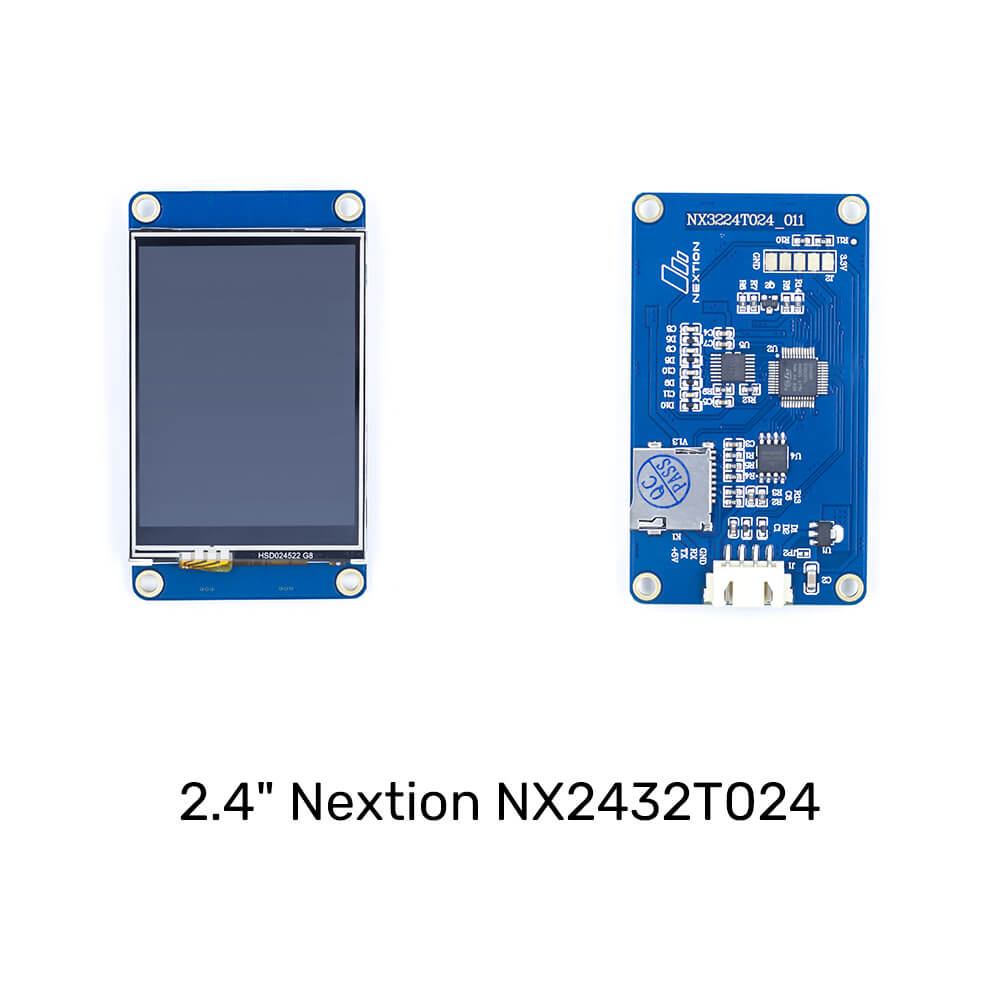

2.4" Nextion NX2432T024:

NX2432T024 is a powerful 2.4'' HMI, which is member of Nextion family. Features include: a 2.4" TFT 320 x 240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

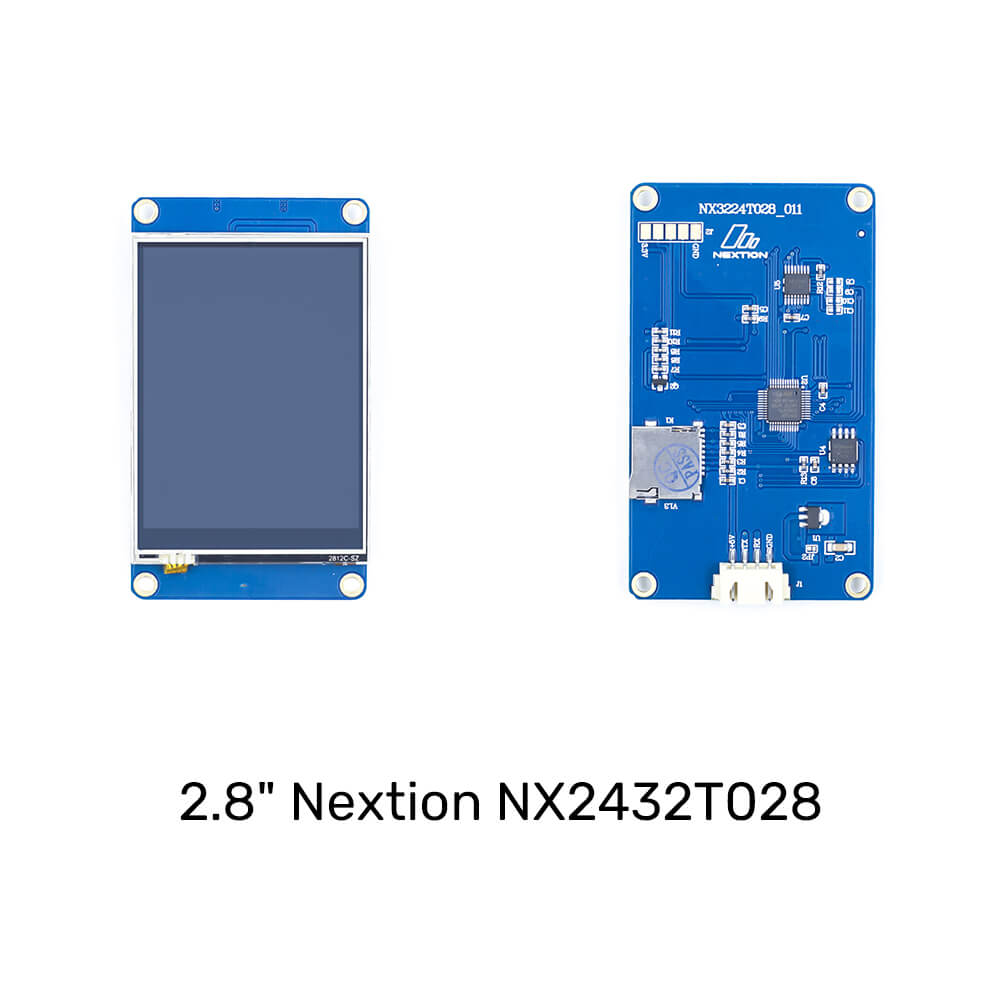

2.8" Nextion NX2432T028:

• 320 x 240 Resolution
• RGB 65K true to life colours
• TFT Screen with integrated 4-wire Resistive Touch Panel
• Easy 4 pin interface to any TTL Serial Host
• 4M Flash memory for User Application Code and Data
• On board micro-SD card for firmware upgrade
• Visual Area: 57.6mm (L) × 43.2mm (W)
• Adjustable Brightness: 0 ~ 180 nit, the interval of adjustment is 1%
• 5V 65mA DC recommended power supply

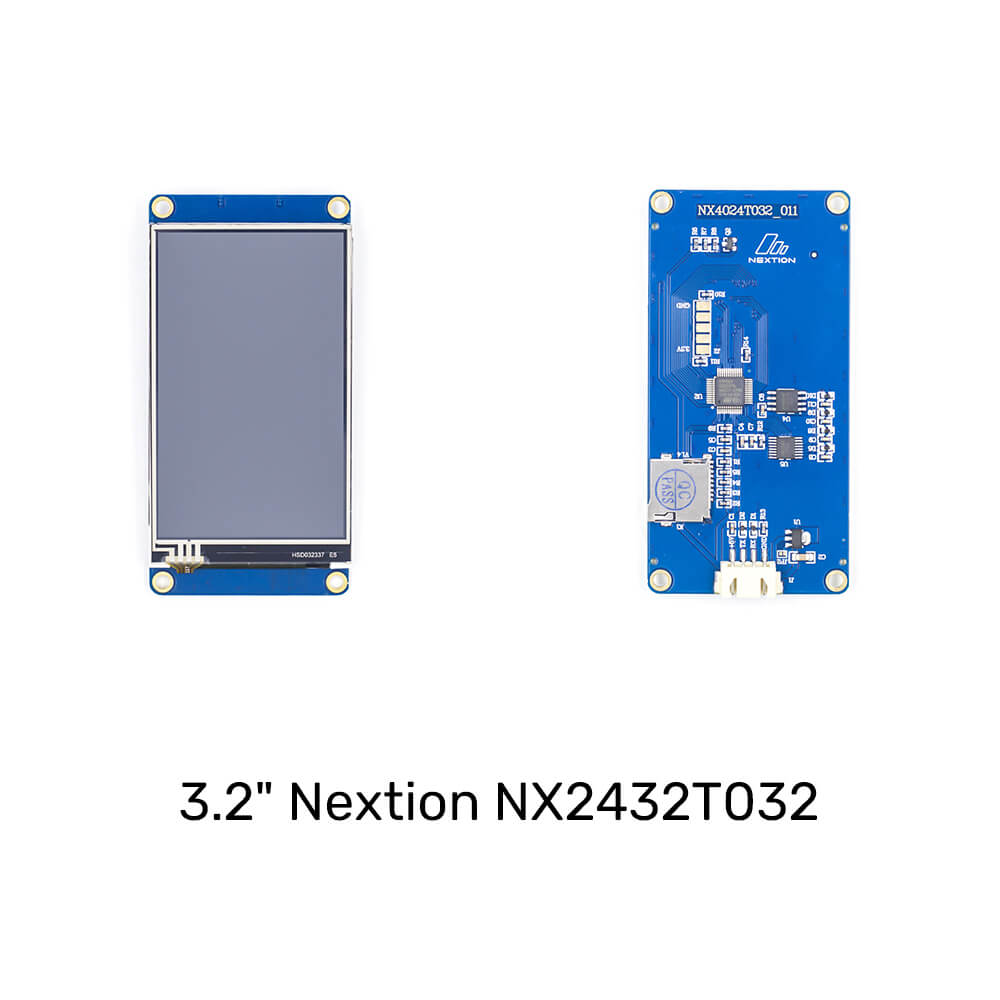

3.2" Nextion NX2432T032:

• 400 x 240 Resolution
• RGB 65K true to life colours
• TFT Screen with integrated 4-wire Resistive Touch Panel
• Easy 4 pin interface to any TTL Serial Host
• 4M Flash memory for User Application Code and Data
• On board micro-SD card for firmware upgrade
• Visual Area: 69.60mm(L)×41.76mm(W)
• Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
• 5V 85mA power conusmption

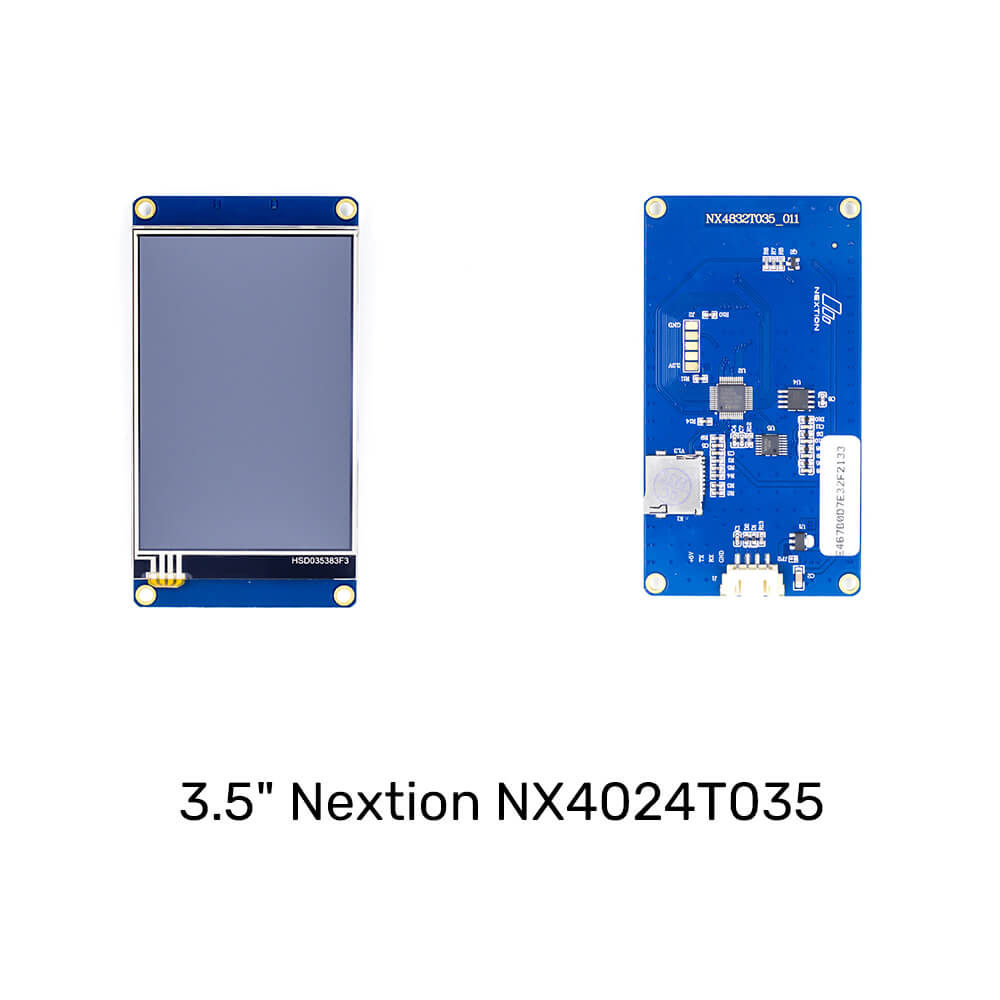

3.5" Nextion NX4024T035:

Features:

• 400 x 240 Resolution
• RGB 65K true to life colours
• TFT Screen with integrated 4-wire Resistive Touch Panel
• Easy 4 pin interface to any TTL Serial Host
• 4M Flash memory for User Application Code and Data
• On board micro-SD card for firmware upgrade
• Visual Area: 69.60mm(L)×41.76mm(W)
• Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
• 5V 85mA power conusmption

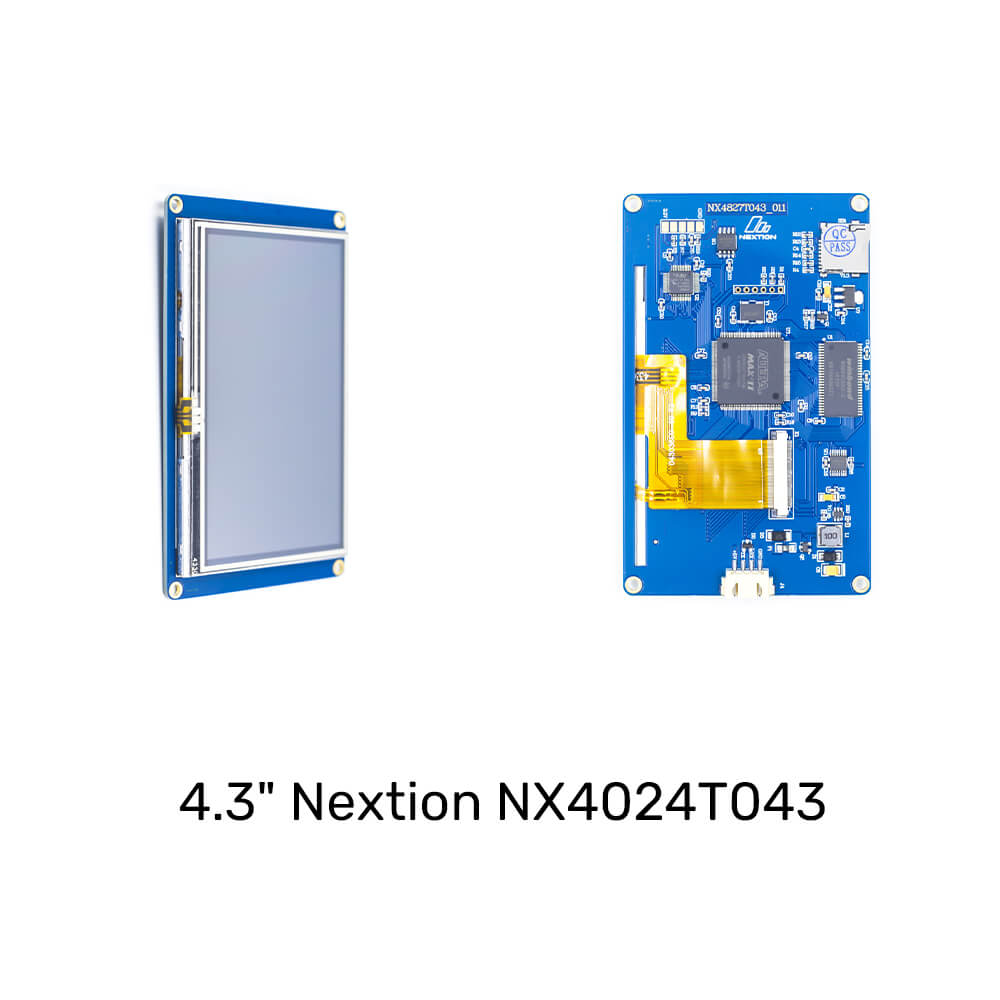

4.3" Nextion NX4024T043:

Features:

• Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2.
• 480 x 272 Resolution
• RGB 65K true to life colours
• TFT Screen with integrated 4-wire Resistive Touch Panel
• Easy 4 pin interface to any TTL Serial Host
• 16M Flash memory for User Application Code and Data
• On board micro-SD card for firmware upgrade
• Visual Area: 95.04mm(L)×53.86mm(W)
• Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
• 5V 250mA power conusmption

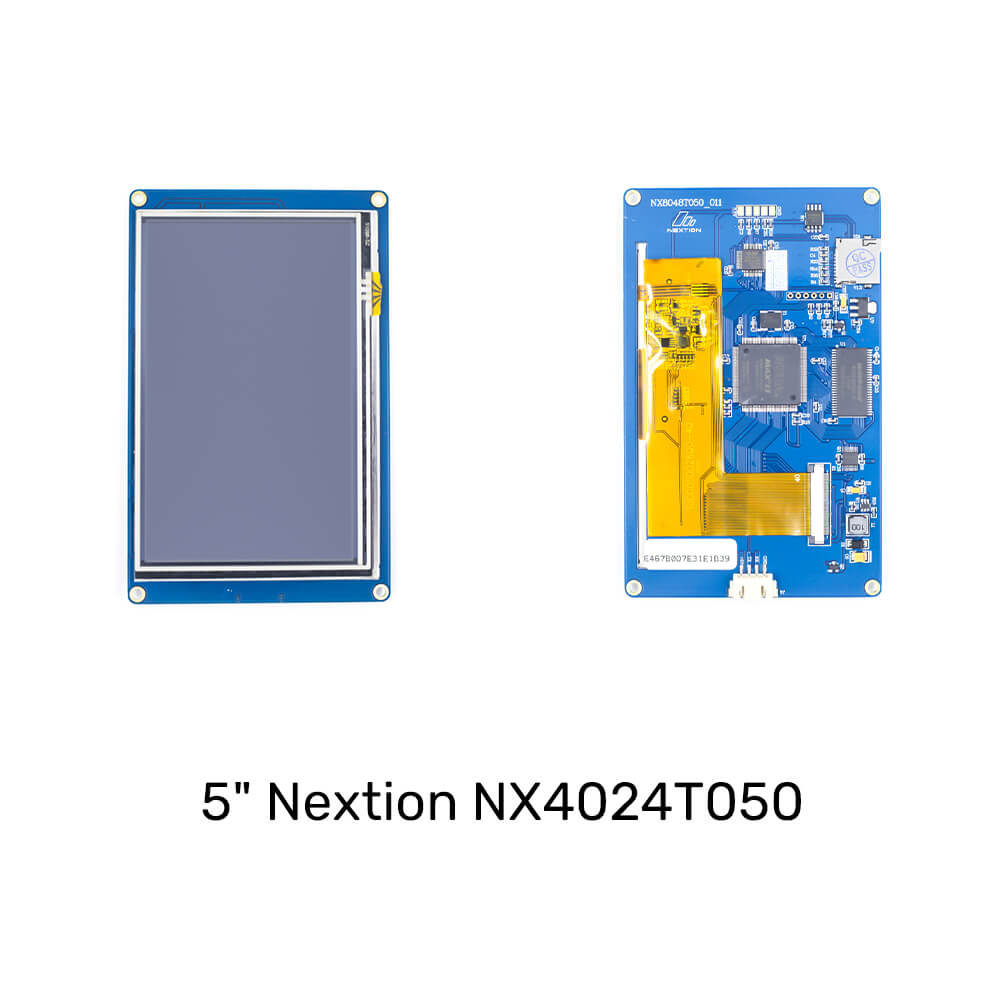

5" Nextion NX4024T050:

NX8048T050 is a powerful 5.0'' HMI, which is member of Nextion family. Features include: a 5.0" TFT 800x480 resistive touch screen display, 16M Flash, 2KByte RAM, 65k colors.

Features:

• Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2,
• 800 x 480 Resolution
• RGB 65K true to life colours
• TFT Screen with integrated 4-wire Resistive Touch Panel For Raspberry Pi
• Easy 4 pin interface to any TTL Serial Host For duino
• 16M Flash memory for User Application Code and Date
• On board micro-SD card for firmware upgrade
• Visual Area: 108mm(L)×64.8mm(W)
• Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
• 5V 410mA power conusmption

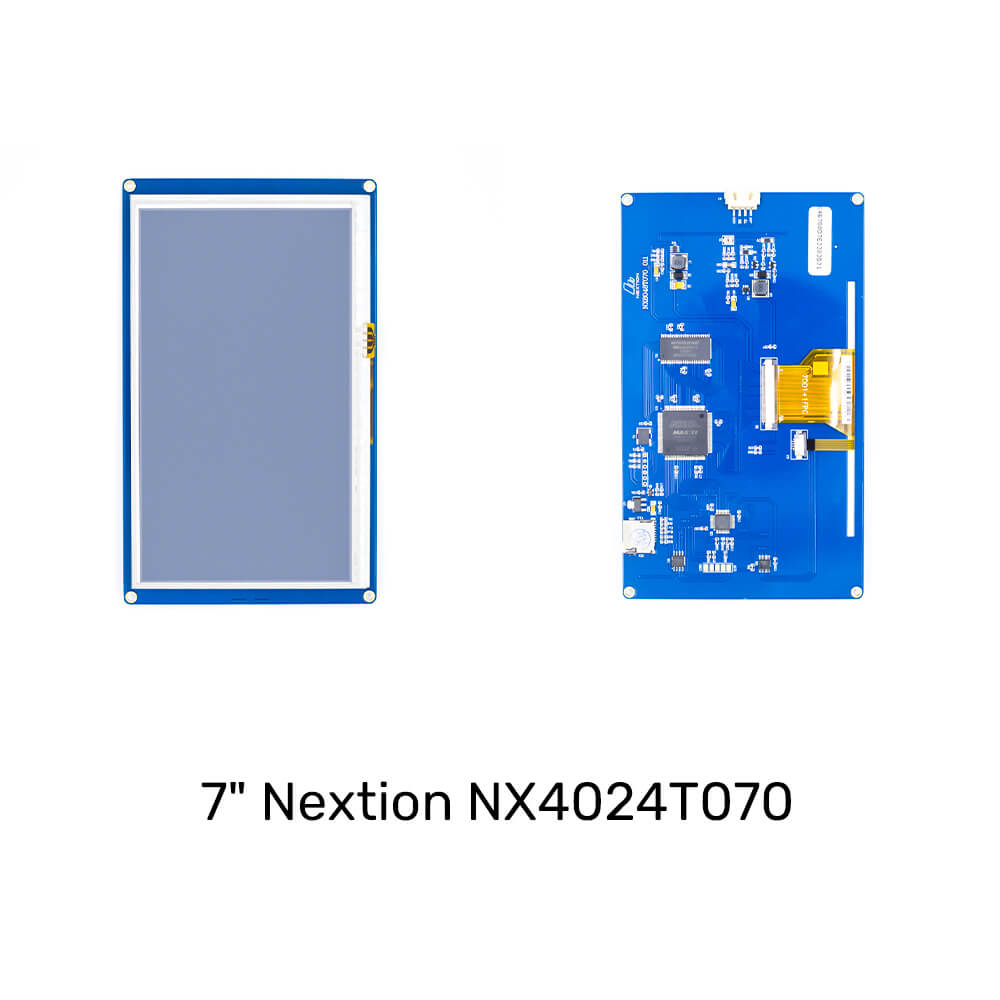

7" Nextion NX4024T070:

Features:

• Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
• 800 x 480 Resolution
• RGB 65K true to life colours
• TFT Screen with integrated 4-wire Resistive Touch Panel
• Easy 4 pin interface to any TTL Serial Host
• 16M Flash memory for User Application Code and Data
• On board micro-SD card for firmware upgrade
• Visual Area:154.08mm(L)×85.92mm(W)
• Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
• 5V 510mA power conusmption
